A tight campsite, a rutted track and a caravan behind the ute is when good visibility stops being a convenience. If you plan to install caravan reversing camera equipment yourself, a careful setup can make reversing into a site, lining up to hitch and watching the rear of your van far less stressful.
A reversing camera is not a substitute for mirrors, a spotter or getting out to check the area. It is another set of eyes where you need them most. For touring Australians, the right system also needs to handle dust, corrugations, rain and long days on the road.
Choose the right camera system first
The best camera system depends on how you use the van. A simple rear-facing camera can help with parking and reversing. A system with a second camera mounted high on the rear can also provide a useful view of traffic behind the caravan while travelling. Some owners choose a dedicated wireless kit with its own monitor, while others connect to an existing compatible head unit.
Wired systems are generally the dependable choice for regular off-road touring. They avoid the interference that can affect wireless signals around long caravans, aluminium cladding or other electronic equipment. Installation takes longer because the cable must be routed safely from the rear of the van to the monitor, but the result is usually more consistent.
Wireless cameras are quicker to fit and can suit a compact camper or a van where running a cable is impractical. Look for a digital system rather than a basic analogue unit, and check its claimed operating distance against the full length of your tow vehicle and caravan. Real-world range can be shorter than the number on the box.
For an off-road caravan, choose a camera with a high ingress-protection rating, solid metal mounting hardware and a wide operating temperature range. Night vision is worthwhile, but do not judge a camera by infrared LEDs alone. Image clarity, a usable viewing angle and a monitor that remains visible in bright Australian sun matter more.
Plan where to install a caravan reversing camera
Before drilling a hole, hold the camera in position and check the view. The rear centreline is normally best, mounted high enough to see the corners of the caravan and the ground immediately behind it. If the camera sits too low, a bike rack, spare wheel or rear bar can block the picture. Too high, and judging distance close to the van becomes harder.
A camera above the rear door or near the number plate light is common, depending on the caravan layout. Keep it clear of opening doors, awnings, ladders and accessories. Make sure the cable entry point is protected from road spray and will not be exposed to branches on narrow tracks.
Inside the tow vehicle, position the monitor where it is easy to glance at without obstructing the windscreen or controls. It should not block an airbag zone. A dash-mounted monitor is often the straightforward option, while a compatible head unit can provide a tidier finish. Whichever you choose, avoid relying on a phone as your permanent display. Heat, glare, mounting security and mobile battery life make it a poor fit for serious touring.
Tools and materials worth having
A clean installation needs more than a drill and a camera kit. Have the correct drill bits, a step bit for larger cable entries, a deburring tool, grommets, exterior-grade sealant, heat-shrink connectors, split conduit, cable ties and a multimeter ready. Use automotive-grade cable and fittings, not household electrical connectors that will shake loose on corrugations.
You will also need a suitable fused power source. Read the camera manufacturer’s wiring diagram before touching the caravan’s electrical system. Modern vans may have dedicated circuits, battery management systems and wiring looms that should not be disturbed casually. If you are unsure what a cable does, stop and identify it properly.

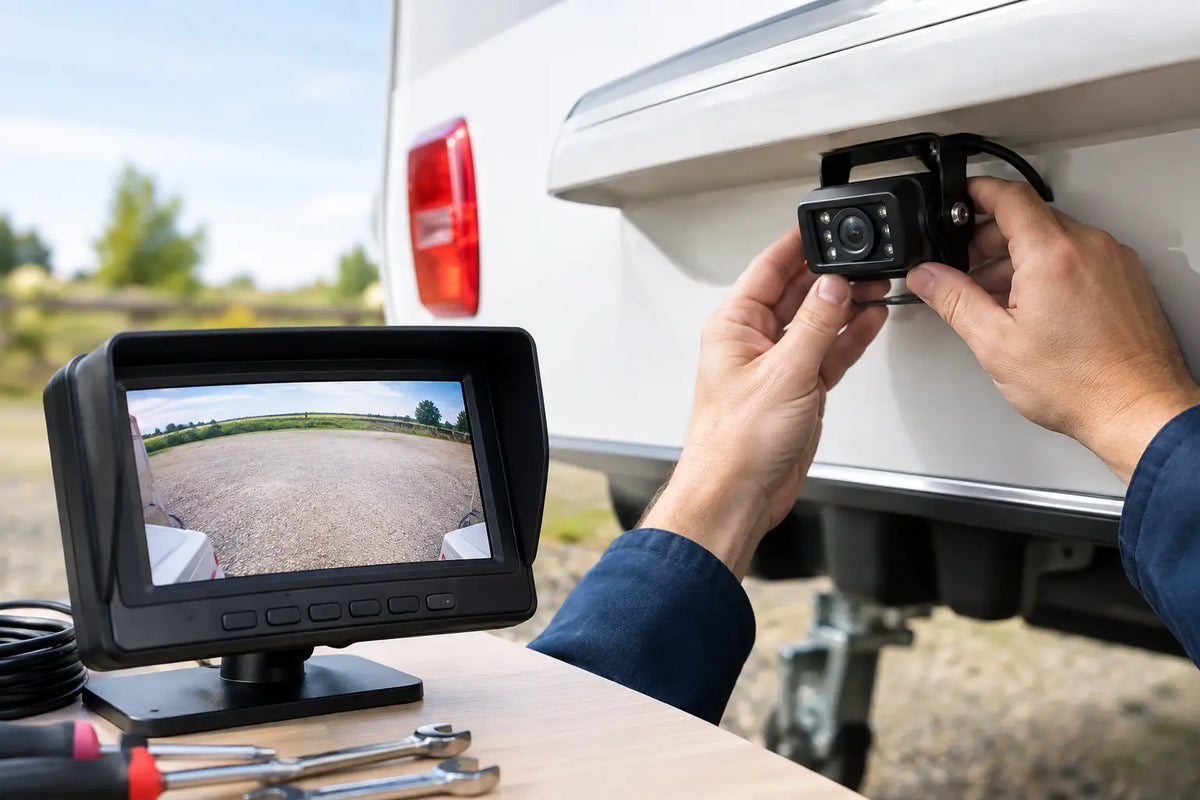

Fitting the camera and protecting the cable
Start by disconnecting the relevant power supply. Mark the mount holes, then check behind the panel for wiring, framing and insulation before drilling. Drill slowly, remove any sharp edges and treat exposed metal edges where required to prevent corrosion. Fit a rubber grommet wherever the camera cable passes through a panel.
Apply a suitable exterior sealant around the mounting holes and cable entry, then secure the camera firmly. The mount should not flex when you press it. Vibration is relentless on unsealed roads, and a loose bracket will soon turn a clear image into a shaky, unusable picture.
Route the cable through existing conduits or cabinetry where possible. Keep it away from moving components, sharp edges, hot exhaust areas and areas where water can pool. Underneath the caravan, place the cable in protective conduit and secure it at regular intervals. Leave enough slack at suspension movement points, but not so much that the cable can sag or snag.
If the camera cable must run from the caravan to the tow vehicle, use a purpose-made trailer connection rather than an exposed loose lead. Mount the connector where it is protected but accessible, and make a habit of checking it when you connect the safety chains and electrical plug. Dust or bent pins can cause an intermittent image that is frustrating to diagnose on the road.
Wiring power safely
There are two common approaches. Wiring the camera to the reverse-light circuit means it switches on only when reverse is selected. This works well for parking cameras and reduces screen distraction while driving. A constant or accessory-powered setup allows the camera to stay on while travelling, making it useful as a rear observation camera.
The right choice comes down to the system and your needs. Some travellers run a rear camera continuously and use it to keep an eye on following traffic or a rear-mounted load. Others prefer the simplicity of reverse-only operation. If the camera is connected to a reverse circuit, confirm the voltage and switching arrangement are compatible with the camera kit before making the connection.
Every added circuit needs correctly sized fusing as close as practical to its power source. Crimp connectors with heat shrink provide a far more durable joint than twisting wires together and wrapping them in tape. Confirm earth connections are clean, secure and protected from moisture. Poor earths are behind plenty of flickering screens and cameras that work one day and fail the next.
If your van has lithium batteries, solar, an inverter or a sophisticated 12V system, professional installation is often money well spent. An auto electrician or caravan technician can integrate the camera without compromising existing wiring, warranty coverage or safety systems.
Set the image before the first trip
Reconnect power and test the system before replacing panels or permanently fastening every cable. Check that the camera activates when intended, the image is stable and the view is not upside down or reversed incorrectly. Most reversing cameras offer mirror-image settings, which make the display behave more naturally when backing up.
Park on level ground and place a few visible markers behind the caravan. Adjust the camera angle until you can see both rear corners and enough ground to judge obstacles. Guide lines can help, but treat them as a reference only. They do not account for articulation between the tow vehicle and caravan, uneven campsites or a tight turn.
Then test it in daylight, low light and with the van connected to the tow vehicle. Watch for interference when lights, a fridge or other 12V appliances are running. On a wireless system, walk around the rig and check whether the picture drops out. It is better to find a weak connection in the driveway than while backing into a bush camp after dark.
Common issues after installation
A blank screen usually points to a power, earth or connection problem. Start with the fuse, then use a multimeter to confirm voltage at the camera and monitor. A rolling, grainy or dropping image can indicate cable damage, a poor connector or wireless interference.
Condensation inside the lens suggests a compromised seal. Check the camera housing and the cable entry point, especially after heavy rain or a dusty run through the outback. If the picture is clear but distance is hard to judge, adjust the angle before buying a new camera. A small change in mounting position can make a major difference.
For caravans built to travel beyond the bitumen, neat wiring and solid mounting are part of the job, not finishing touches. Take the time to fit the system properly, test it under real conditions and keep using mirrors and a spotter. That extra visibility lets you spend less time worrying about the next tight reverse and more time choosing the track ahead.
